Product images are for illustration purposes and may differ in details.
Product number:
204510
Product files available on request!
Product information "Thread Milling Cutter SolidCUT Single row 60° 3xD HA"
Our SolidCUT series offers a comprehensive range of solid carbide thread mills.
The helical flutes enable a smooth cutting action and excellent surface finishes.
The universally applicable thread mills are unbeatable in terms of price-performance ratio and enable efficient machining.
SolidCUT is a development of mimatic and is manufactured in Germany.
The helical flutes enable a smooth cutting action and excellent surface finishes.
The universally applicable thread mills are unbeatable in terms of price-performance ratio and enable efficient machining.
SolidCUT is a development of mimatic and is manufactured in Germany.
| pitch [mm]: | 2 |
|---|---|
| Thread range: | ≥ M14 |
| Cutting diameter D [mm]: | 11,7 |
| type of profile: | Partial Profile |
| Type of thread: | Internal Thread |
| Type: | SolidCUT Single row |
| Number of cutting edges: | 8 |
| Number of teeth: | 1 |
| Rake angle: | 8° |
| Internal Coolant supply: | Radial*B |
| Type of design: | 3xD |
| thread profile: | 60° |
| thread standard: | similar DIN 13 |
| thread direction: | Right & Left hand Thread |
| Coating: | Tinamatic |
| substrate: | Solid Carbide |
| area of application: | Universal ≤64HRC |

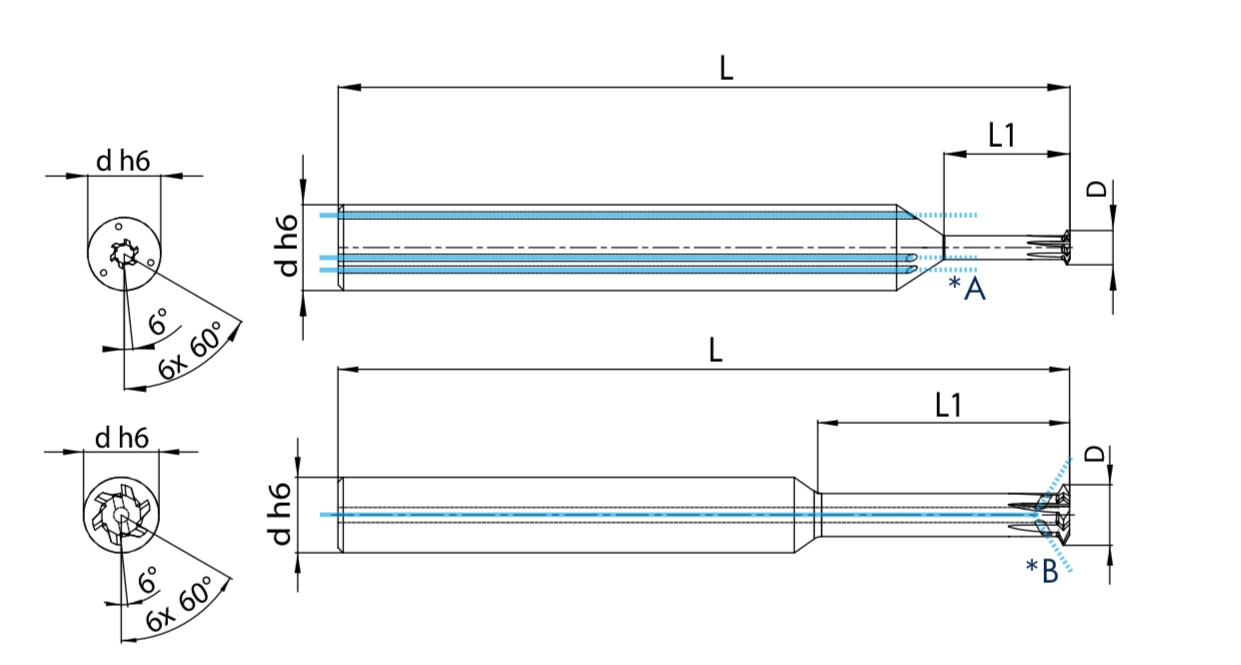

| d h6 [mm]: | 12 |
| L [mm]: | 101 |
| L1 [mm]: | 52 |
| Helix angle: | 0° |
Before use, the machine must be checked for any potential interference contours caused by the tool. We do not accept any liability for any resulting damage.
|
P (Steel)
|
M (Stainless Steel)
|
K (Cast Iron)
|
N (Non-ferrous metal)
|
S (Super-alloys and Titanium)
|
H (Hard material)
|
O (Others)
|
|---|
